Electronic pedals





PE-series electronic pedals are intended for use as part of engine control systems and auxiliary braking systems of motor vehicles.



specifications

PE-1.01

General specifications

Operating voltage range5 – 32 V
Recommended supply voltage5 V
Maximum current consumption20 mA
Pedal starting angle45° ± 1°
Operating angular range15° ± 1°
Maximum nonlinearity of functional characteristics in the orepating angular range1,5%
Error of functional characteristics at control points, less than±40 mV
Number of channels2
Maximum force26…32 N
Weight1,5 ± 0,1 kg

Operating conditions

Operating temperature range–40…+65 °C
Relative humidity, at +25 ° C, less than80%
Atmospheric pressure range630 – 800 mm Hg

Dimensions

Size (length / width / height)78х365х178 mm

PE-2

Download

PE-2.01

Download

PE-2.02

Download

PE-2.03

Download

PE-3.01

Download

PE-4

Download

PE-5

Download

PE-7

General specifications

Operating voltage range5 – 32 V
Recommended supply voltage5 V
Maximum current consumption20 mA
Pedal starting angle45° ± 1°
Operating angular range15° ± 1°
Maximum nonlinearity of functional characteristics in the orepating angular range1,5%
Error of functional characteristics at control points, less than±40 mV
Number of channels2
Maximum force26…32 N
Weight1,5 ± 0,1 kg

Operating conditions

Operating temperature range–40…+65 °C
Relative humidity, at +25 ° C, less than80%
Atmospheric pressure range630 – 800 mm Hg

Dimensions

Size (length / width / height)80х361х207 mm

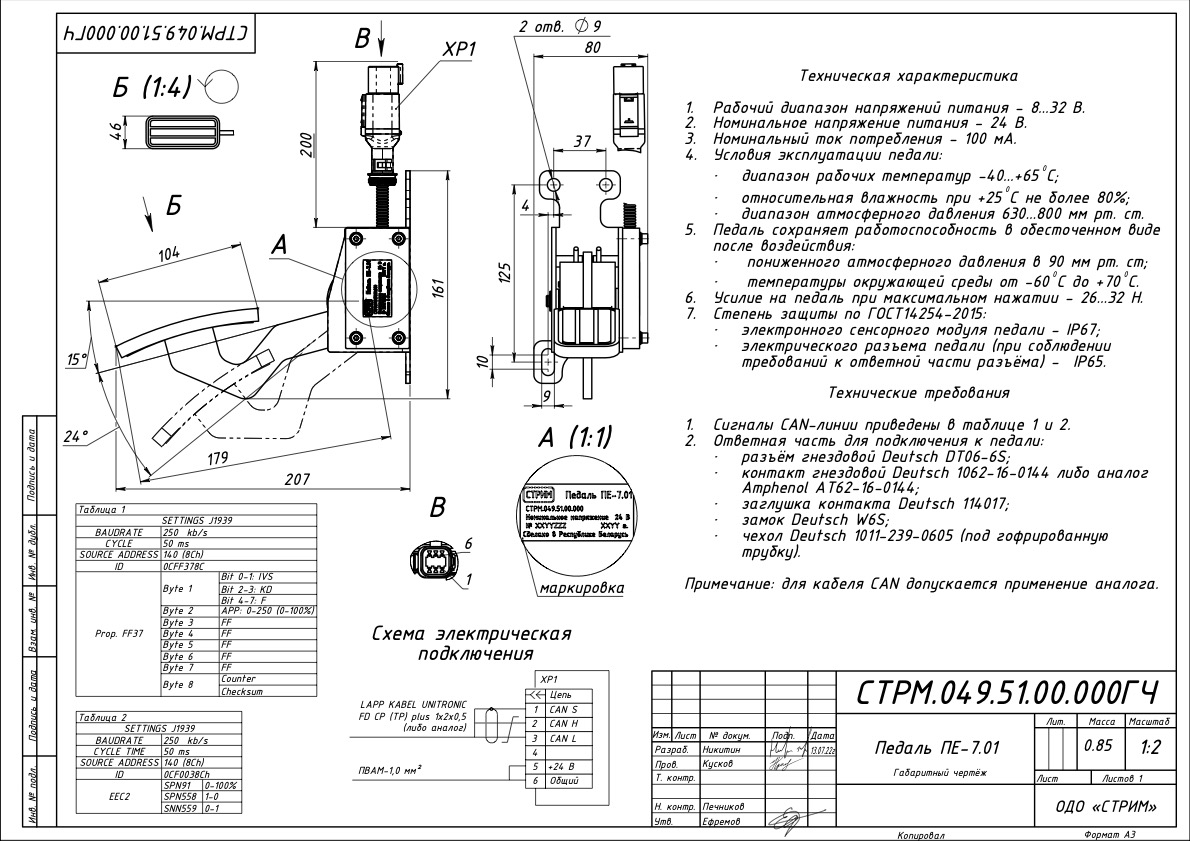

PE-7.1

General specifications

Operating voltage range5 – 32 V
Recommended supply voltage5 V
Maximum current consumption20 mA
Pedal starting angle45° ± 1°
Operating angular range15° ± 1°
Maximum nonlinearity of functional characteristics in the orepating angular range1,5%
Error of functional characteristics at control points, less than±40 mV
Number of channels2
Maximum force26…32 N
Weight1,5 ± 0,1 kg

Operating conditions

Operating temperature range–40…+65 °C
Relative humidity, at +25 ° C, less than80%
Atmospheric pressure range630 – 800 mm Hg

Dimensions

Size (length / width / height)80х361х207 mm

PE-9

General specifications

Operating voltage range5 – 32 V
Recommended supply voltage5 V
Maximum current consumption20 mA
Pedal starting angle45° ± 1°
Operating angular range15° ± 1°
Maximum nonlinearity of functional characteristics in the orepating angular range1,5%
Error of functional characteristics at control points, less than±40 mV
Number of channels2
Maximum force26…32 N
Weight1,5 ± 0,1 kg

Operating conditions

Operating temperature range–40…+65 °C
Relative humidity, at +25 ° C, less than80%
Atmospheric pressure range630 – 800 mm Hg

Dimensions

Size (length / width / height)80х361х207 mm
