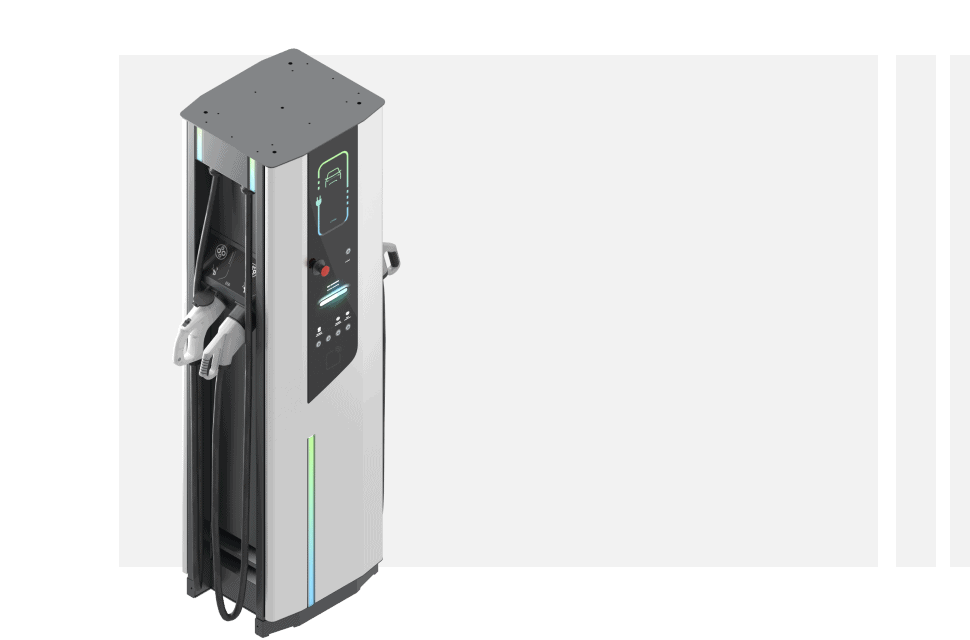

Fast charging station STREAM EС.A
AC|DC charging stations for fast charging of electric vehicles and hybrids batteries. Remote monitoring and control of the charging process, metering of consumed electricity feautures are supported.
Suitable for indoor and outdoor use.
Specifications
Input characteristics
| Connection to the mains | 3P+N+PE |
| Mains voltage, V | 400 |
| Frequency, Hz | 50/60 |
| Max current per phase, A | 160 |
| Certified electricity meter | optional |
DC output characteristics
| Max. current of channel CHAdeMO, А | 125 |
| Max. current of channel CCS, А | 150 |
| Max. current of channel GB/T, А | 125 |
| Cable length, m | 4 |
| Max. output power, kW | 80 |
| Max. power per one channel at simultaneous charging of 2 vehicles, kW | 40 |
| Max. output power when only one channel is active, kW | 80* |
| Max. voltage, V | 750 |
*limitations due to connection type
Design characteristics
| Dimensions (d/w/h), mm |
|
| Product weight, kg |
|
Operational characteristics
| Operating temperature, °C | от -30 до +40 |
| Humidity, at 20 °C, % | 90 |
| Atmospheric pressure, mm.Hg. | 630-800 |
| Type of installation | floor |
Safety options
| Degree of protection according to GOST 14254-2015 | IP54 |
| Degree of protection according to GOST IEC 62262-2015 |
|
| Circuit breaker | ✓ |
| Emergency stop button | ✓ |
| Isolation and PE continuity monitoring | ✓ |
Interaction and connectivity
| Information display | 12″ screen |
| User input | backlit keys |
| LED channel indication | ✓ |
| RFID reader (Mifare, Desfare) | ✓ |
| Charging start methods |
|
| Built-in WEB server for local diagnostics and customization | ✓ |
| OCPP 1.6j support | ✓ |
| LAN connection | Built-in LTE/WiFi modem |
| Connection to the ASCME | RS485/GSM |
