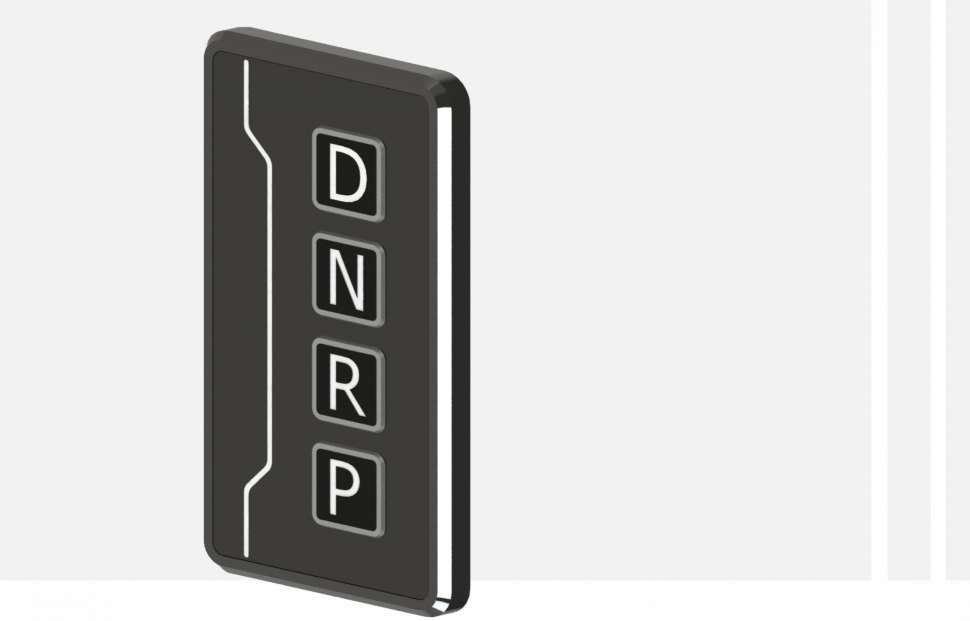

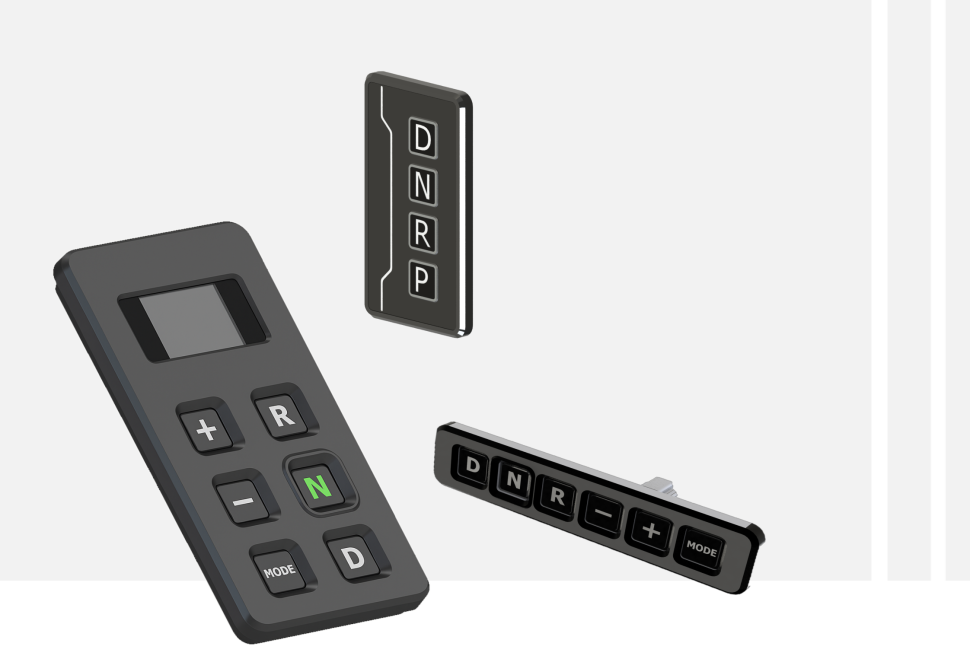

Push-button shifters
The selectors are designed for use in transmission control systems of various types – mechanical, hydro-mechanical, hydro-volumetric, electromechanical. The selector communicates with other electronic devices of the vehicle via the CAN interface (J1939 protocol).
Specifications

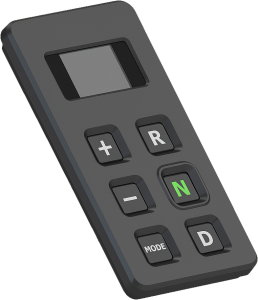

The selector has six buttons: D – forward movement, N – neutral, R – reverse. “+” – shift up, “-” – shift down, the “MODE” button can be used to select the transmission operating mode, for example, automatic or command. All buttons are backlit. The alphanumeric display can display the selected driving mode, or diagnostic information.
General specifications
| Operating supply voltage range | 18 – 32 V |
| Weight | 0,7 ± 0,1 kg |
| Number of CAN interfaces | 1 |
Input specifications
| Total number of inputs | 4 |
Analog counter input specifications
| Range of measured input voltage | 0 – 80 V |
| Accuracy | 0,1 V |
| Maximum input voltage of the counting input | 50 V |
| Resolution | 4 us |
| Maximum frequency of input signal | 10 kHz |
Output specifications
| The number of power outputs designed to control external devices | 4 |
| Maximum continuous current of power outputs, no more than | 2 A |
Operating conditions
| Ambient temperature | -45… + 60 °С |
| Relative humidity, at 35 ° С | 98 % |
| Atmospheric reduced pressure | 52 (limit value – 12) kPa |
The selector must remain operational when exposed to the
following mechanical overloads:
| Repeated mechanical shocks with a peak acceleration of 150 m/s2 (15g) and a shock acceleration duration of 5 to 10 ms. | |
| Sinusoidal vibration in the frequency range from 1 to 500 Hz and an increase in the vibration acceleration amplitude of 50 m / s2 (5g) |

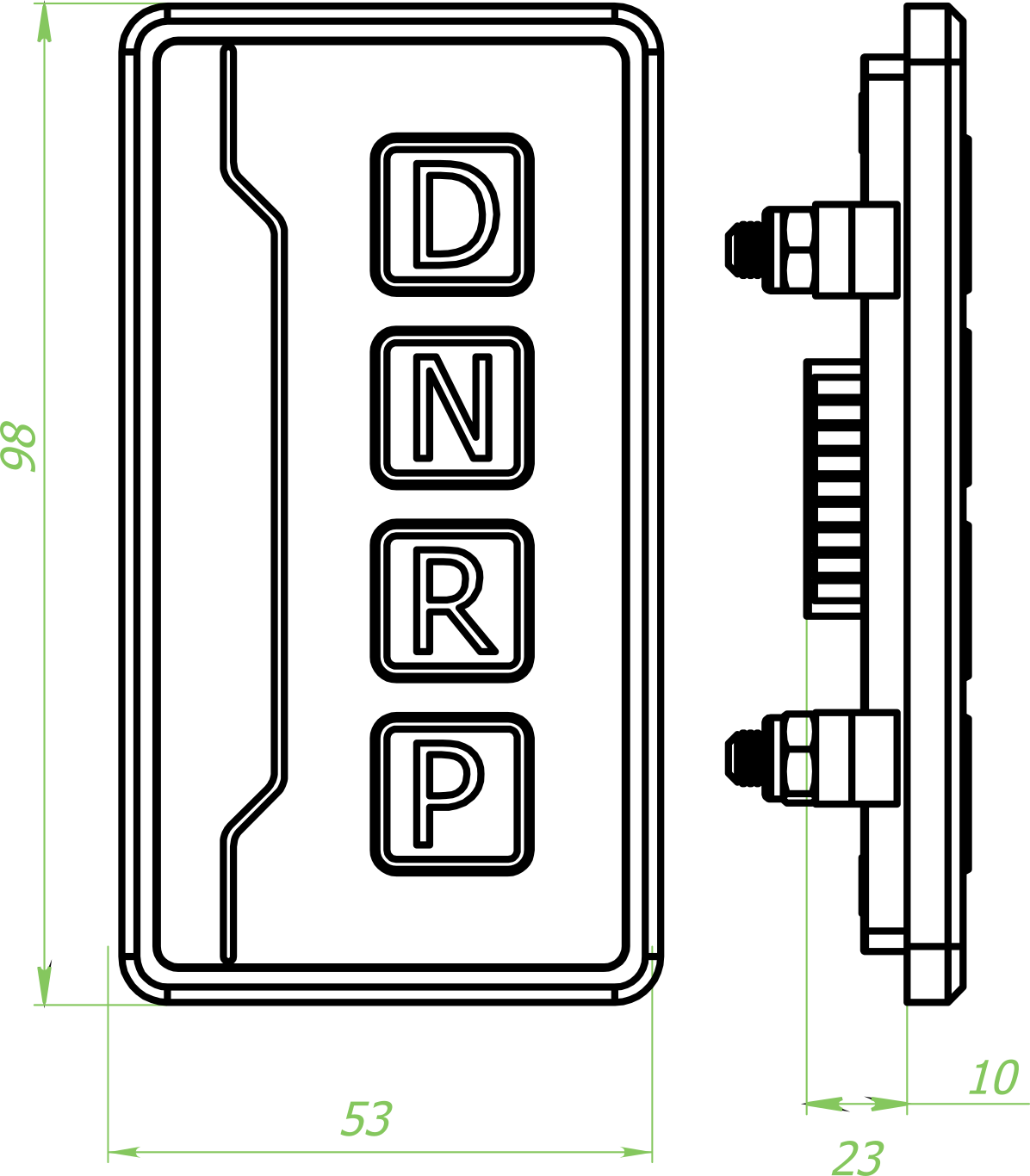

Dimensions
| Size (length / height) | 109х183 mm |
