PV-12 display panel
PV-12 is a multifunctional electronic display that works with electronic units of various vehicle systems via the CAN (J1939 protocol) and displays operating parameters of systems on its screen.
The PV-12 display can work with electronic engines (Cummins, Detroit, Deutz, CAT, YaMZ, MMZ), electronic transmissions (Allison, DANA, ZF, STRIM), electronic braking systems of various manufacturers.
In addition to standard J1939, it is possible to work with proprietary protocols.
specifications
General specifications
| Rated supply voltage | 24 V |
| Number of CAN interfaces | 2 |
| Number of USB ports | 1 |
| Power consumption, no more than (without load) | 15 W |
| Number of video inputs | 4 |
| Weight | 1,36 kg |
| Display type | TFT |
| Screen resolution | 1280 × 800 px |
| Number of displayed colors | 262 000 |
Operating conditions
| Ambient temperature | -30…+65 ºС |
| Relative humidity at 20 ° C | 80% |
| Atmosphere pressure | 84 – 106.7 kPa |

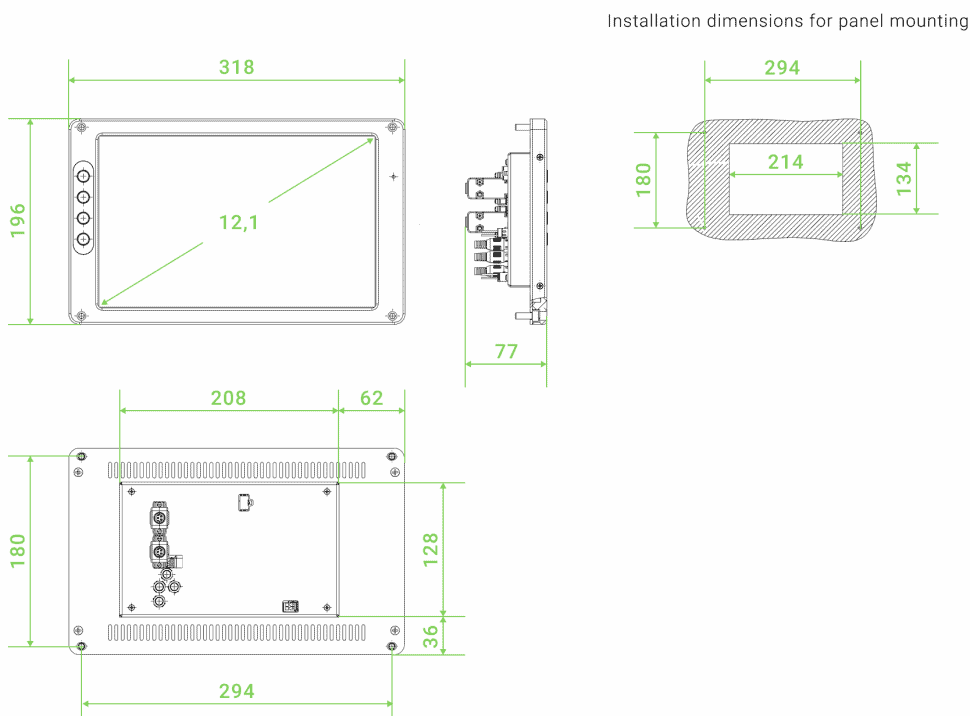

Dimensions
| Size (length / width / height) | 318х77х196 mm |
| Screen size | 12.1′ |
