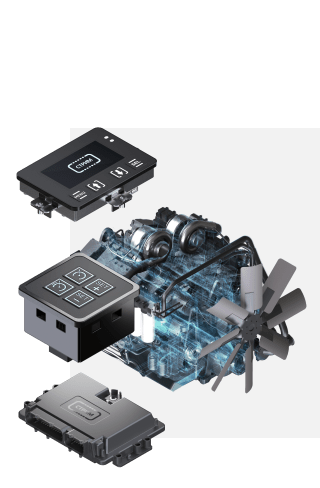

Remote engine controller (CAN)

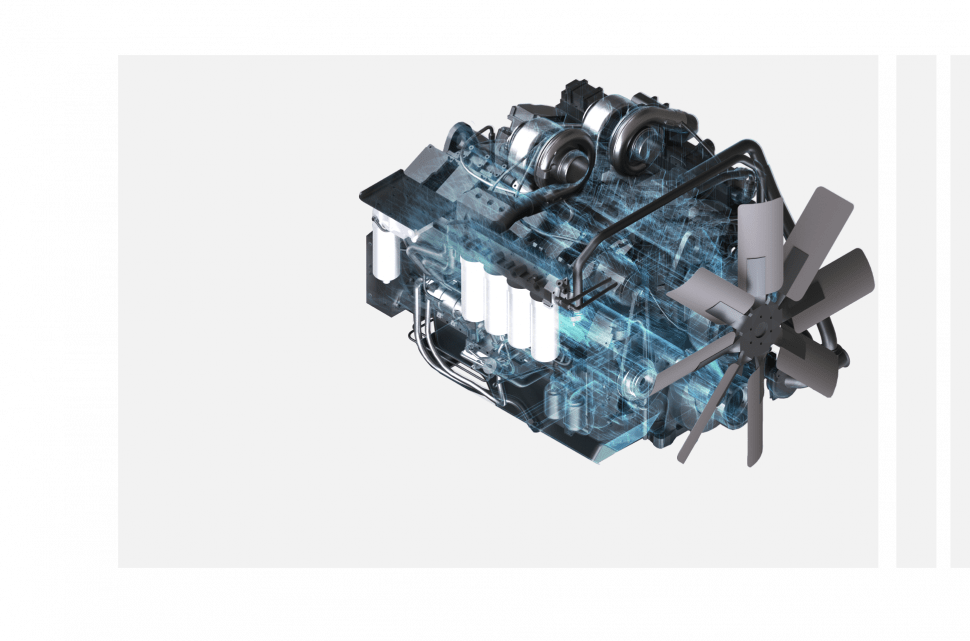

Engine control system with CAN support is a solution for mobile and stationary vehicles with internal combustion engines Euro 3, 4, 5, 6.
The system allows to set the engine speed from keyboard panel connected to the CAN bus of the engine and maintain the engine speed at required operating modes.

The control system supports J1939 protocol. Operator’s software provides the convenient interface for setting the speed, limits and minimum values. The system includes display for the engine parameters and possible issues indication.

Presentation

basic set

Control system capabilities

Engine control via the compact keyboard module with CAN support;
One click Initial rotation frequency setup;
Rotation frequency limitation presets;
Manual rotation control using +/- keyboard with a customizable step;

Simple cable harness: two power wires and two CAN wires;
Installing the keyboard module anywhere on chassis;
Installing the panel to control operating parameters anywhere on chassis (optional feature)

advanced set

the Control system capabilities

Engine speed control via external keys;
One click Initial rotation frequency setup;
Engine speed limitation with presets;
Manual rotation control using +/- keyboard with a customizable step;
Vehicle speed limitation;
Emergency stop button channel is supported;
Remote engine start/stop;

Emergency states signals generation and indication on specialized temperature and pressure indicators;
Engine state & issues indication;
Installing the module anywhere on chassis;
Connectors protection IP67. Operation at depth up to 2 m;
Installing the panel to control operating parameters anywhere on chassis (optional feature).
