Remote Radio Control System
The system includes a handheld remote transmitter and a control unit with a built-in radio receiver, delivering precise and smooth hydraulic operation.
Designed for flexibility, it can be:
Factory-installed as standard equipment in new machinery,
Retrofitted to upgrade existing vehicles or equipment.
Specifications
Power & Interfaces
| Rated supply voltage | 12/24 V |
| Proportional outputs | 10/12 |
| Discrete outputs | 6 |
| Universal outputs | 12 |
| CAN interfaces | 2 |
Standard Configuration
| Radio frequency, MHz | 433 |
| Transmitter range, m | 50 |
| Proportional joysticks/outputs (1A) | 4/8 |
| Discrete outputs (2A), remote-controllable | 6 |
| Discrete feedback (base unit ↔ transmitter) | Not available |
| Digital feedback (base unit ↔ transmitter) | – |
Custom Configuration (On Request)
| Radio frequency | 433 MHz |
| Transmitter range | 100 m |
| Proportional joysticks/outputs (1A) | 6/12 |
| Remote-controllable discrete outputs (2A) | 6 |
| Discrete feedback (base unit ↔ transmitter) | Available |
| Digital feedback (base unit ↔ transmitter) | Available |

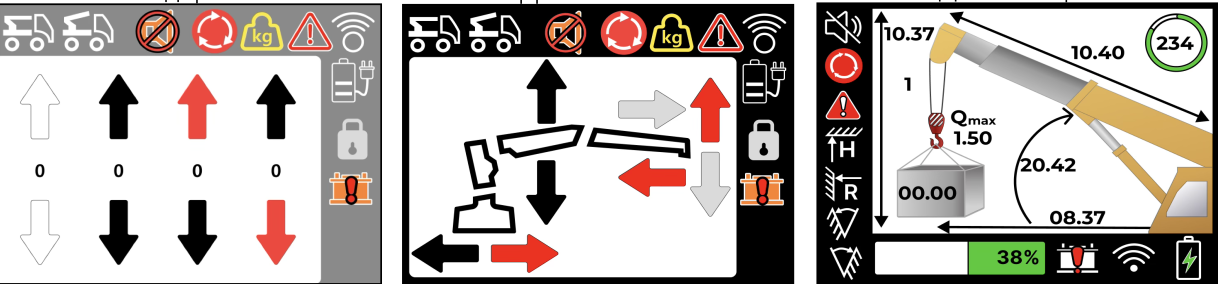

Screen examples
Gallery
