Pneumatic devices

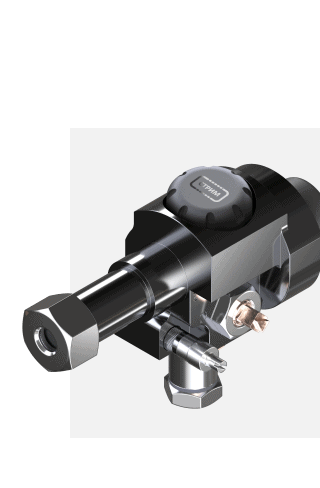

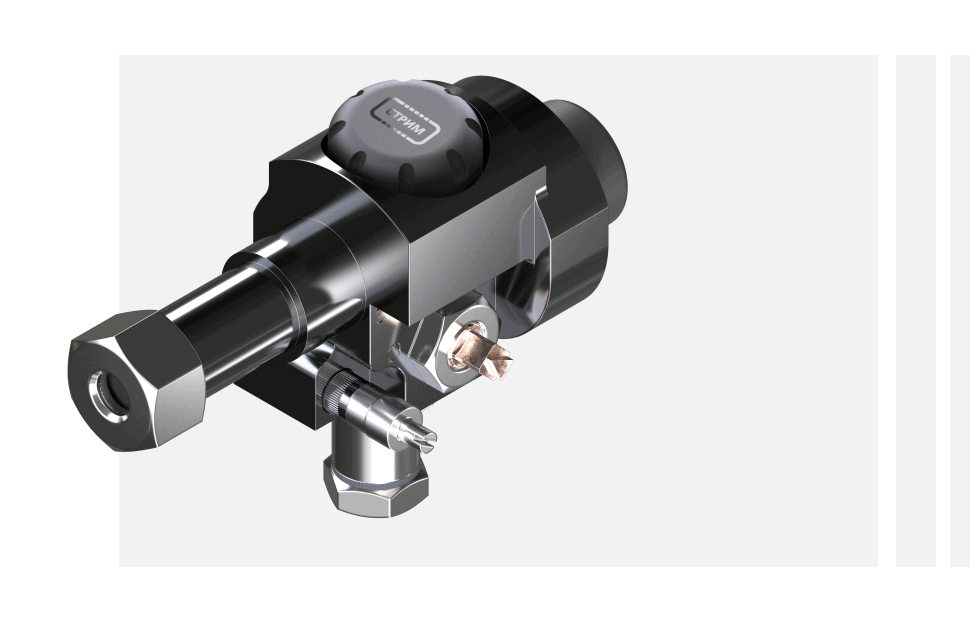

Tire valve KK-06


The tire valve KK-06 is a device that solves the main problem of tire pressure control systems – protecting the sealing cuffs in the air supply heads from wear. The valve automatically keeps the tire pressure after inflation, provides inflation and deflation on the go.

Minimizes possibility of human error during operations. The installation of a radio pressure sensor and an emergency valve is provided by the request of the customer.




General specifications

Operating air pressure0 – 10 bar
Nominal diameter4 mm
Tire pressure regulation range1 – 8.5 bar
Additional emergency valve
Radio pressure sensor
Built-in filter
Weight0.32 kg
Tightness of the valve and connections, GOST 9544-2005class А


Size (length / width / height)117х44х90 mm
