Pneumatic devices

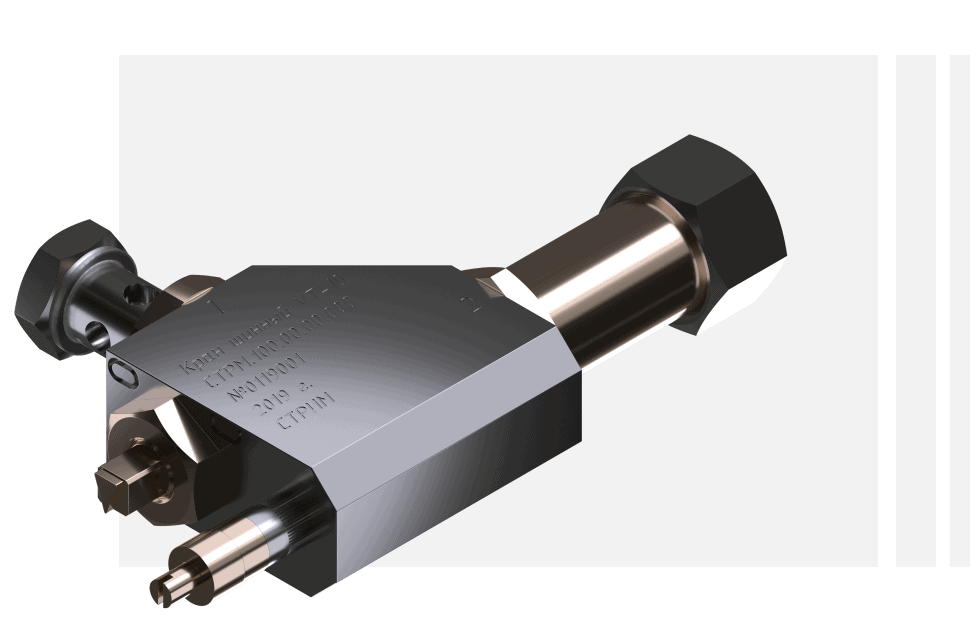

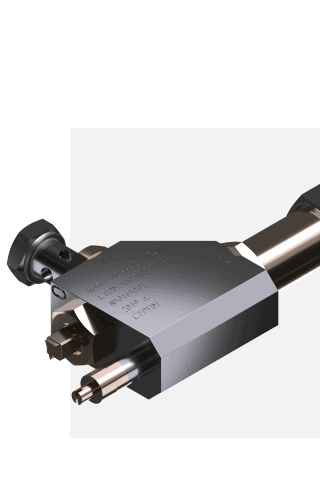

tire valve VT-10




The tire valve VT-10 of the tire pressure regulation system is based on technical solutions developed by STRIM engineers. The design of the valve provides two positions: “open” and “closed” with the operating angle is 90 ⁰, which reduces the time of operations.

The valve design can be adapted in accordance with the customer’s wheel characteristics.



specifications

General specifications

Operating air pressure0 – 10 bar
Nominal diameter10 mm
Tightness of the valve and connections, GOST 9544-2005.class А
Weight0,42 kg

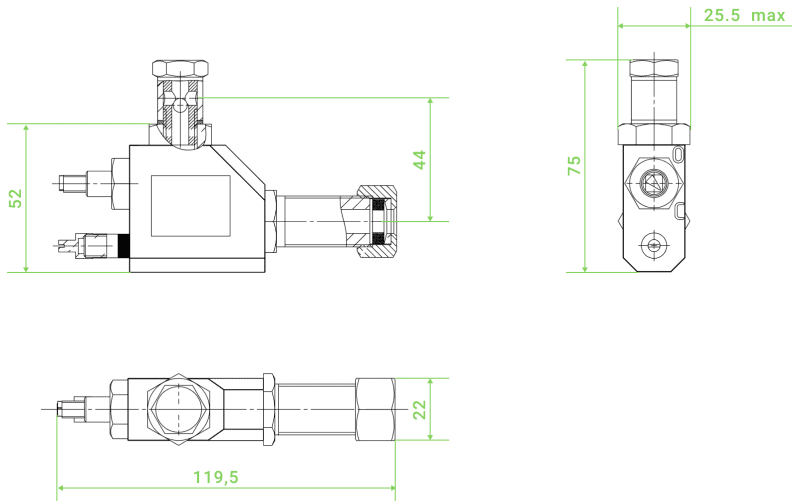

Dimensions

Size (length / width / height)119,5х25,5х75 mm

Download
