Wireless pressure sensor
APS Pressure PRO
A non-contact type sensor with built-in battery for detecting air pressure from 0.5 to 13 bar. The perfect solution for tire pressure monitoring systems in vehicles or industrial pneumatic installations. Transmits data on pressure and temperature through a radio module at a distance in line of sight up to 100 m. Installation inside and outside of tanks or tires on a valve with V8 thread is provided.
5 years warranty.
specifications
General specifications
| Operating frequency | 433, 92 МГц |
| Wireless range (line) | ~ 100 м |
| Measured pressure range | 0,7 – 13 atm |
| Data refresh rate (at a normal pressure) | 5 min |
| Delay between messages when pressure drops | 1 s |
| Power supply | built-in battery 3 V |
| Operating temperature range | -40…+120 ºС |
| Weight | 18 g |
| Compatible with the data readers/loggers | MI-15.0.5 module, Pulse Mining |

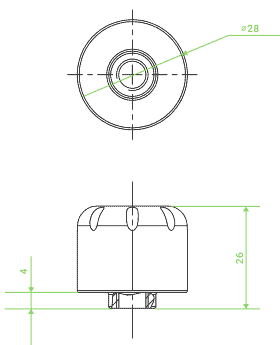

Dimensions
| Dimensions | ø28х26 mm |
